VACUFLO True Cyclonic
VACUFLO LEAVES NOTHING BEHIND BUT FRESH AIR
VACUFLO Central Vacuum Systems offer unique cleaning solutions for homeowners– True Cyclonic®, Filtered Cyclonic™, and Disposable Bag. All are full-featured, powerful systems that provide a superior cleaning experience. VACUFLO power units are rated by square footage, although the best system for your home may be rated at a higher square footage, depending on your layout and chosen system options. Your central vac dealer will recommend the best unit to provide you with maximum cleaning power.
True Cyclonic

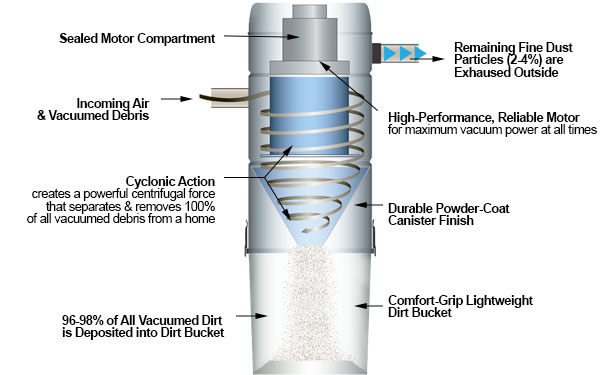

VACUFLO’s True Cyclonic power units provide sustained cleaning power by utilizing cyclonic filtration to separate the dirt from the airflow without the use of bags or filters.
- Powerful, high-performance motor delivers reliable, lasting performance
- Eliminates 100% of vacuumed dirt, dust and allergens from your home
- Provides sustained cleaning power by utilizing cyclonic filtration
- No bags or filters to replace
- Wide range of units to accommodate any home size
- Outdoor exhaust required
True Cyclonic Unit Specifications
| Model | 260 | 466Q | 566Q | 760 | MaxAir |
|---|---|---|---|---|---|
| Recommended Home Size | up to 3,000 sq. ft. | up to 5,000 sq. ft. | up to 8,000 sq. ft. | up to 12,000 sq. ft. | up to 22,000 sq. ft. |
| Sealed Vacuum (H20 Lift) | 112″ | 121″ | 135″ | 112″ | 208″ |
| CFM Max | 116 | 114 | 118 | 232 | 122 |
| Max Air Watts* | 443 | 477 | 535 | 886 | 903 |
| Volts | 120 | 120 | 120 | 120 | 240 |
| Max/Avg. Amps** | 14.2/10.5 | 14.9/11.6 | 15.6/12.0 | 28.4/21.0 | 13.8/13.0 |
| Collection Capacity | 5-1/2 gallons | 6 gallons | 6 gallons | 6 gallons | 6 gallons |
| Level of Quietness*** | 70.1 dBA | 59.7 dBA | 60.7 dBA | 67.8 dBA | 71.1 dBA |
