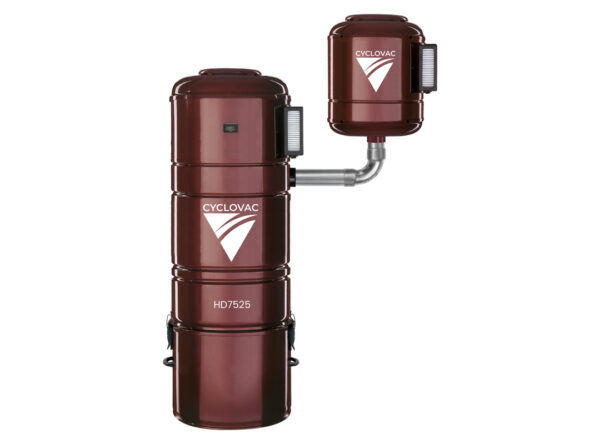

CYCLOVAC Central vacuum 7525 – Hybrid

CYCLOVAC
ACYHD7525A
Model : HD7525

This high performance central vacuum model with 2 separate motor units can be connected in series (recommended for Retraflex®) or in parallel depending on cleaning needs. Ideal for effective cleaning with very large surfaces, a long piping system, use with long hoses or an installation with multiple regular or Retraflex® outlets.

This model can’t be installed in a closed space. For specific details regarding the installation of this model, refer to the user manual.

Recommendations :

  • Type of building : large
  • Approximative area* : 1 858m2 (20 000 ft2)

Specifications:

  • Water lift: In series: 254 in.| 6452 mm, in parallel: 149.2 in.| 3790 mm
  • Airwatts: 1354 AW
  • Filtration type: Hybrid
Specifications – In Series
Airwatts Decibels Air Flow Water Lift Max Amps Voltage Turbines
1354 72 136.7 CFM | 232.3 CMH 254 in | 6452 mm 14.6 240 4
Specifications – In Parallel
Airwatts Decibels Air Flow Water Lift Max Amps Voltage Stage
1354 70 273.4 CFM | 464.5 CMH 149.2 in | 3790 mm 14.6 240 4
Series – Hybrid
Bag Capacity Canister Capacity Height Diameter Weight
5.8 gal US | 22 L 6.2 gal US | 23.3 L 41.8 in | 106.2 cm 14.1 in | 35.8 cm 37.5 lb | 17 kg
Series – Second Unit
Bag Capacity Canister Capacity Height Diameter Weight
0 gal US | 0 L 0 gal US | 0 L 17 in | 43.2 cm 11 in | 27.9 cm 15.8 lb | 7.2 kg

$2,060.00
